Festo
535883

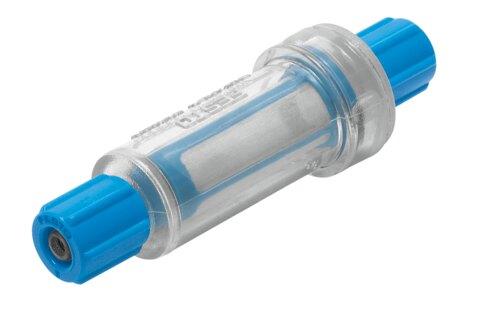

Vacuum filter VAF-PK-3
The Festo 535883 is an industrial component featuring a 2 mm nominal width, a 50 µm filtration grade, and an operating pressure range of -0.95 bar to 0 bar designed solely for open vacuum systems. Weighing 4 g with PA housing and a POM union nut, it delivers a flow rate of 50.8 l/min at a negative pressure of -0.75 bar and accommodates in-line installation via PK-3 pneumatic connections with a union nut. This RoHS-compliant unit operates in ambient temperatures from 0 µC to 40 µC, maintains VDMA24364-B1/B2-L LABS conformity, and is suitable for lithium-ion battery production with reduced Cu/Zn/Ni values (F1a). Request a quote by submitting the exact part number, required quantity, and application parameters.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535883
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535883.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2 mm
- Mounting position
- Any
- Grade of ltration
- 50 µm
- Operating pressure
- -0.95 bar...0 bar
- Information on operating pressure
- Only for use in open vacuum systems
- Flow rate at negative pressure = -0.75 bar
- 50.8 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- 0 °C...40 °C
- Product weight
- 4 g
- Type of mounting
- In-line installation
- Pneumatic connection
- PK-3 with union nut
- Material of union nut
- POM
- Note on materials
- RoHS compliant
- Compressed air lter material
- Fabric | PA
- Housing material
- PA
- Ejector pulse suitability
- 8 bar
