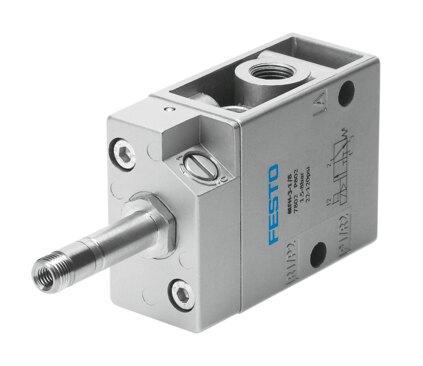

Reference imageConfirm configuration by manufacturer part number.
Festo
535900
Air solenoid valve MFH-3-1/8-S-EX
The Festo 535900 is a 3/2-way closed, monostable industrial component featuring a plate seat structural design, a 26 mm width, a 5 mm nominal width, and a G1/8 pneumatic working port. Delivering a normal nominal flow rate of 500 l/min, this electrically actuated valve operates within a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar) using a mechanical spring reset method and an operating voltage applied via a separately ordered solenoid coil. Certified with IP65 protection and compliant with ATEX, UKCA, and EPL Db/Gb standards for explosive ambient temperatures between -5°C and +40°C, it supports gas category II 2G (Ex h IIC T4 Gb) and dust category II 2D (Ex h IIIC T130°C Db). Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535900
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535900.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 500 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal width
- 5 mm
- Width dimension
- 27 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.1 MPa...0.8 MPa
- Pilot pressure
- 1 bar...8 bar
