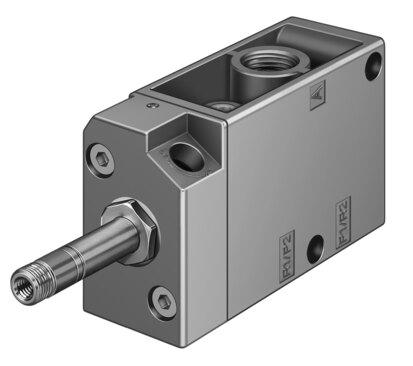

Reference imageConfirm configuration by manufacturer part number.
Festo
535901
Air solenoid valve MFH-3-1/4-S-EX
The Festo 535901 is a 3/2-way closed, monostable industrial component featuring a plate seat structural design with a 30.5 mm width, a 7 mm nominal width, and a G1/4 pneumatic working port. Operating at pressures ranging from -0.095 MPa to 1 MPa (-0.95 bar to 10 bar), it delivers a normal nominal flow rate of 800 l/min and utilizes electrical actuation via a separately ordered solenoid coil with a mechanical spring reset method. This IP65-rated unit carries CE and UKCA markings alongside ATEX and international explosion protection certifications for gas (II 2G, Ex h IIC T4 Gb, EPL Gb) and dust (II 2D, Ex h IIIC T130°C Db, EPL Db) within an explosive ambient temperature range of -5°C to +40°C. Submit the exact part number, quantity, and application requirements to receive an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535901
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535901.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 30.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal width
- 7 mm
- Width dimension
- 32 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.1 MPa...0.8 MPa
- Pilot pressure
- 1 bar...8 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 535901. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
