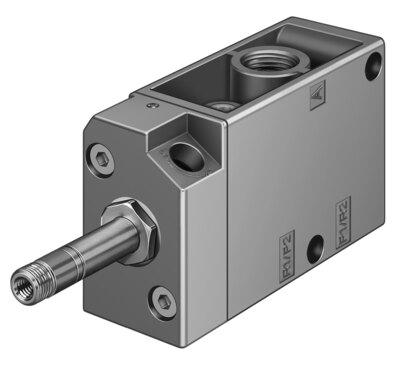

Name: Festo 535904 Air solenoid valve MOFH-3-1/4-EX
Brand: Festo

Air solenoid valve MOFH-3-1/4-EX

The Festo 535904 is a 3/2-way monostable open industrial component featuring a 30.5 mm width, a 7 mm nominal width, and a plate seat structural design with a mechanical spring reset. It delivers a normal nominal flow rate of 800 l/min through G1/4 pneumatic working ports across an operating pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar). Electrical actuation operates via a solenoid coil ordered separately, supporting IP65 protection and c UL us recognition alongside ATEX, UKCA, and EPL Db/Gb explosion protection certifications for II 2G gas and II 2D dust categories within an ambient temperature range of -5°C to +40°C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535904
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535904.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, monostable, open
Actuation type: Electrical
Width: 30.5 mm
Normal nominal ow rate (normalized to DIN 1343): 800 l/min
Pneumatic working port: G1/4
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
Structural design: Plate seat
Reset method: Mechanical spring
Certication: c UL us - recognized (OL)
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Degree of protection: IP65
Nominal width: 7 mm
Width dimension: 32 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting
Type of control: Piloted
Flow direction: Non-reversible
Lap: Negative overlap
Switching time oﬀ: 41 ms
On switching time: 14 ms

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 535904. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
