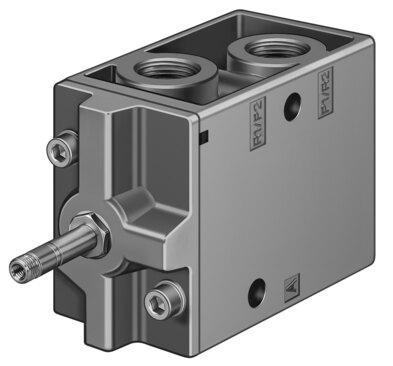

Name: Festo 535905 Air solenoid valve MOFH-3-1/2-EX
Brand: Festo

Air solenoid valve MOFH-3-1/2-EX

The Festo part number 535905 is an electrical 3/2-way monostable open industrial component featuring a plate seat structural design, a 52 mm width, and a G1/2 pneumatic working port. This unit delivers a normal nominal flow rate of 3700 l/min at an operating pressure range of 0.15 MPa to 0.8 MPa, utilizing a mechanical spring reset method and operating voltage via a separately ordered solenoid coil. It carries CE, UKCA, ATEX gas (II 2G), and ATEX dust (II 2D) certifications with an IP65 degree of protection for explosive ambient temperatures between -5°C and +40°C. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535905
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535905.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, monostable, open
Actuation type: Electrical
Width: 52 mm
Normal nominal ow rate (normalized to DIN 1343): 3700 l/min
Pneumatic working port: G1/2
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
Structural design: Plate seat
Reset method: Mechanical spring
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Degree of protection: IP65
Nominal width: 14 mm
Width dimension: 69 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting
Type of control: Piloted
Flow direction: Non-reversible
Lap: Negative overlap
b-value: 0.3
Switching time oﬀ: 90 ms
On switching time: 18 ms
