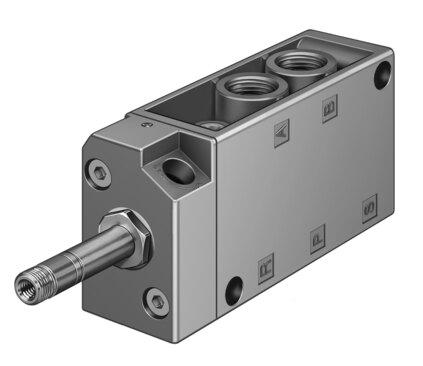

Reference imageConfirm configuration by manufacturer part number.
Festo
535907
Air solenoid valve MFH-5-1/4-EX
The Festo 535907 is an electrical 5/2-way monostable industrial component featuring a plate seat structural design, a 30.5 mm width, a nominal width of 7 mm, and a normal nominal flow rate of 1000 l/min with G1/4 pneumatic working ports. Operating within a pressure range of 0.22 MPa to 0.8 MPa (2.2 bar to 8 bar), this unit utilizes a mechanical spring reset method and requires a solenoid coil ordered separately for its operating voltage. Certified with an IP65 degree of protection, it includes ATEX and UKCA markings alongside EPL Db and EPL Gb certifications for explosive ambient temperatures between -5°C and +40°C, covering gas category II 2G (Ex h IIC T4 Gb) and dust category II 2D (Ex h IIIC T130°C Db). Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535907
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535907.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 30.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.22 MPa...0.8 MPa | 2.2 bar...8 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal width
- 7 mm
- Width dimension
- 32 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- b-value
- 0.19
- C value
- 4.49 l/sbar
- Switching time off
- 29 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 535907. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
