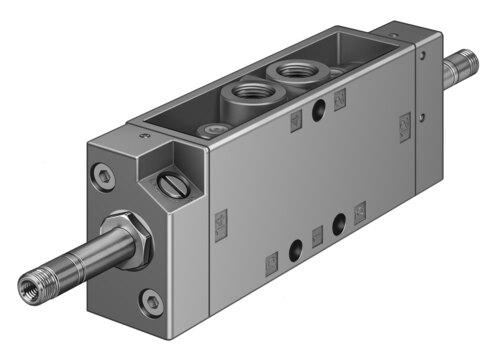

Name: Festo 535912 Air solenoid valve JMFH-5-1/8-EX
Brand: Festo

Air solenoid valve JMFH-5-1/8-EX

The Festo part number 535912 is a 26 mm wide 5/2-way bistable industrial component featuring electrical actuation via a solenoid coil ordered separately and an adjustable exhaust air function. Operating within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar), this plate seat valve delivers a normal nominal flow rate of 600 l/min through G1/8 pneumatic working ports with a 5 mm nominal width. Certified with IP65 protection and rated for explosive ambient temperatures between -5°C and +40°C, it carries CE and UKCA markings alongside ATEX and EPL Gb/Db certifications for gas category II 2G (Ex h IIC T4 Gb) and dust category II 2D (Ex h IIIC T130°C Db). Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535912
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535912.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Width: 26 mm
Normal nominal ow rate (normalized to DIN 1343): 600 l/min
Pneumatic working port: G1/8
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
Structural design: Plate seat
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Degree of protection: IP65
Nominal width: 5 mm
Width dimension: 27 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting
Type of control: Piloted
Flow direction: Non-reversible
Lap: Negative overlap
Max. switching frequency: 25 Hz
Changeover time: 10 ms
Max. positive test pulse with 0 signal: 2200 µs
Max. negative test pulse on 1 signal: 3700 µs
