Festo
535914

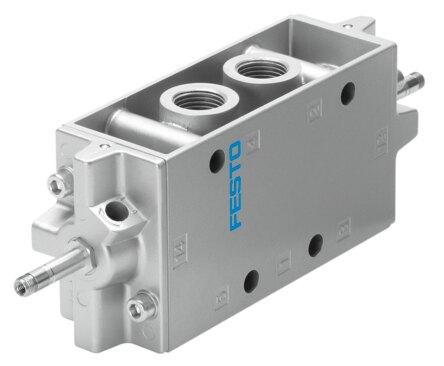

Air solenoid valve JMFH-5-1/2-EX
The Festo part number 535914 is an electrical 5/2-way bistable industrial component featuring a plate seat structural design with a 14 mm nominal width, a 52 mm width, a 69 mm width dimension, and G1/2 pneumatic working ports. Operating within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar), this unit delivers a normal nominal flow rate of 4500 l/min and incorporates an adjustable exhaust air function alongside IP65 degree of protection. Operating voltage requires a separately ordered solenoid coil, while compliance is established via CE marking per the EU explosion protection directive, UKCA marking per UK EX instructions, and EPL Db and EPL Gb certifications outside the EU for ATEX category gas II 2G (Ex h IIC T4 Gb) and dust II 2D (Ex h IIIC T130°C Db) within an explosive ambient temperature range of -5°C to +40°C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535914
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535914.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 52 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4500 l/min
- Pneumatic working port
- G1/2
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Structural design
- Plate seat
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal width
- 14 mm
- Width dimension
- 69 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- b-value
- 0.3
- C value
- 19.5 l/sbar
- Max. switching frequency
- 25 Hz
- Changeover time
- 20 ms
