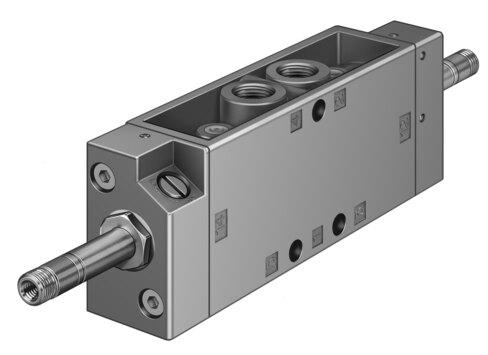

Reference imageConfirm configuration by manufacturer part number.
Festo
535915
Air solenoid valve JMFH-5-1/8-S-EX
The Festo 535915 is a 5/2-way bistable industrial component featuring an electrical actuation type, a 26 mm width, and a normal nominal flow rate of 600 l/min normalized to DIN 1343. Built with a plate seat structural design, a 5 mm nominal width, and G1/8 pneumatic working ports, this unit operates at pressures from 0 MPa to 1 MPa (0 bar to 10 bar) and includes an adjustable exhaust air function with IP65 degree of protection. It carries CE and UKCA markings compliant with EU and UK explosion protection directives, featuring ATEX category II 2G for gas and II 2D for dust, EPL Db and Gb certifications, ignition protection types Ex h IIC T4 Gb and Ex h IIIC T130°C Db, and an explosive ambient temperature range of -5°C to +40°C, utilizing a solenoid coil operating voltage that must be ordered separately. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535915
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535915.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 600 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Structural design
- Plate seat
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal width
- 5 mm
- Width dimension
- 27 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.12 MPa...0.8 MPa
- Pilot pressure
- 1.2 bar...8 bar
- Max. switching frequency
- 25 Hz
