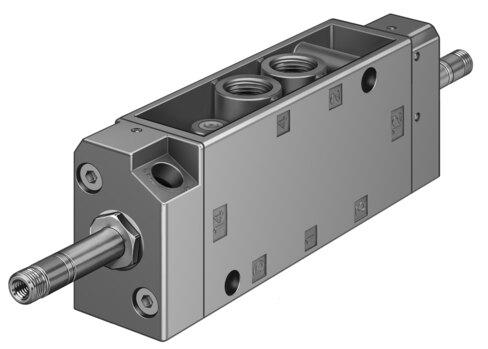

Reference imageConfirm configuration by manufacturer part number.
Festo
535916
Air solenoid valve JMFH-5-1/4-S-EX
The Festo 535916 is a 5/2-way bistable electrical industrial component featuring a plate seat structural design, a 30.5 mm width, a 7 mm nominal width, and a normal nominal flow rate of 1100 l/min through G1/4 pneumatic working ports. Operating within a pressure range of 0 bar to 10 bar (0 MPa to 1 MPa), this IP65-rated valve includes adjustable exhaust air function and requires a separately ordered solenoid coil for its operating voltage within an explosive ambient temperature of -5°C to +40°C. It complies with ATEX category II 2G and II 2D directives, carrying ignition protection ratings of Ex h IIC T4 Gb for gas and Ex h IIIC T130°C Db for dust, along with EPL Gb (GB) and EPL Db (GB) certifications, CE marking, and UKCA marking. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535916
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535916.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 30.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Structural design
- Plate seat
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal width
- 7 mm
- Width dimension
- 32 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.12 MPa...0.8 MPa
- Pilot pressure
- 1.2 bar...8 bar
- Max. switching frequency
- 25 Hz
