535920

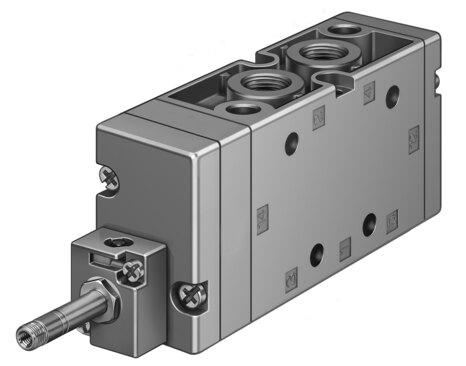

Name: Festo 535920 Air solenoid valve MFH-5-3/8-B-EX
Brand: Festo

Air solenoid valve MFH-5-3/8-B-EX

The Festo 535920 is a 5/2-way monostable industrial component featuring a piston gate valve structural design and electrical actuation with a mechanical spring reset method. It provides a normal nominal flow rate of 2000 l/min, a nominal width of 12 mm, G3/8 pneumatic working ports, an adjustable exhaust air function, and an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar). Certified with an IP65 degree of protection and ATEX/UKCA ratings for explosive environments (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T130°C Db for ambient temperatures between -5°C and +40°C), this unit has a 40 mm width and a width dimension of 41 mm. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535920
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535920.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Width: 40 mm
Normal nominal ow rate (normalized to DIN 1343): 2000 l/min
Pneumatic working port: G3/8
Operating pressure: 0.25 MPa...1 MPa | 2.5 bar...10 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Degree of protection: IP65
Nominal width: 12 mm
Width dimension: 41 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Max. switching frequency: 3 Hz
Switching time oﬀ: 56 ms
On switching time: 20 ms

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 535920. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
