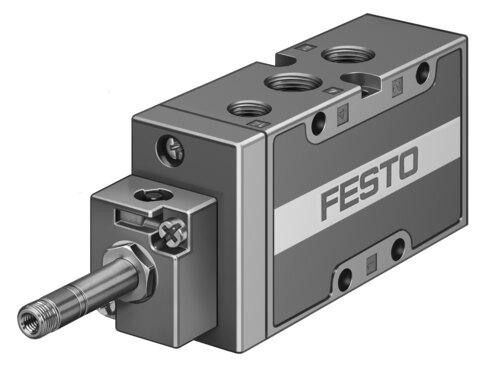

Reference imageConfirm configuration by manufacturer part number.
Festo
535925
Air solenoid valve MFH-5-1/4-S-B-EX
The Festo 535925 is a 32 mm wide, 5/2-way monostable industrial component featuring electrical actuation, a plate seat structural design, and a mechanical spring reset method with an adjustable exhaust air function. This unit provides a normal nominal flow rate of 1300 l/min through G1/4 pneumatic working ports across an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) at a nominal width of 7 mm. Rated to IP65 protection, it includes CE and UKCA markings per explosion protection directives, ATEX category II 2G for gas and II 2D for dust, ignition protection types Ex h IIC T4 Gb and Ex h IIIC T130°C Db, and EPL Db (GB) and EPL Gb (GB) certifications for explosive ambient temperatures between -5°C and +40°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535925
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535925.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1300 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal width
- 7 mm
- Width dimension
- 33 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- b-value
- 0.29
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 535925. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
