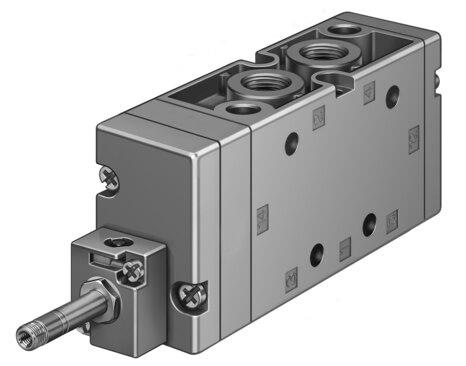

Name: Festo 535929 Air solenoid valve MFH-5-3/8-L-S-B-EX
Brand: Festo

Air solenoid valve MFH-5-3/8-L-S-B-EX

The Festo 535929 is a 40 mm wide electrical industrial component featuring a monostable 5/2-way valve function with a piston gate valve structural design and a pneumatic spring reset method. It delivers a normal nominal flow rate of 2000 l/min through G3/8 pneumatic working ports across an operating pressure range of -0.9 bar to 10 bar, complemented by an adjustable exhaust air function and an IP65 degree of protection. Certified with CE, UKCA, ATEX category II 2G for gas and II 2D for dust, along with EPL Db and EPL Gb explosion protection, it operates within explosive ambient temperatures from -5°C to +40°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535929
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535929.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Width: 40 mm
Normal nominal ow rate (normalized to DIN 1343): 2000 l/min
Pneumatic working port: G3/8
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Degree of protection: IP65
Nominal width: 12 mm
Width dimension: 41 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Reversible
Lap: Positive overlap
Pilot pressure MPa: 0.2 MPa...1 MPa
Pilot pressure: 2 bar...10 bar
Max. switching frequency: 3 Hz
