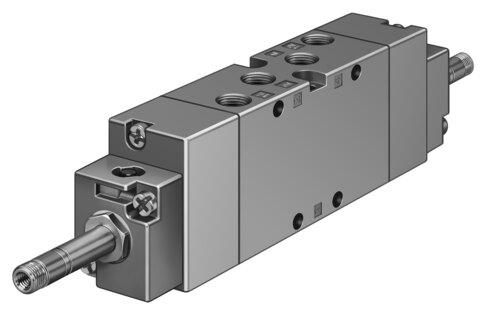

Reference imageConfirm configuration by manufacturer part number.
Festo
535930
Air solenoid valve JMFH-5-1/8-B-EX
The Festo 535930 is a 26 mm wide, electrically actuated 5/2-way bistable industrial component featuring a piston gate valve structural design with soft sealing. It provides a normal nominal flow rate of 1000 l/min through G1/8 pneumatic working ports across an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) and holds an IP65 degree of protection for any mounting position. Certified with CE, UKCA, EPL Db (GB), EPL Gb (GB), ATEX category II 2G for gas (Ex h IIC T4 Gb), and ATEX category II 2D for dust (Ex h IIIC T130°C Db), it operates within an explosive ambient temperature range of -5°C to +40°C. Submit the exact part number, quantity, and application requirements to request a quote for this part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535930
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535930.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Structural design
- Piston gate valve
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal width
- 8 mm
- Width dimension
- 27 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Max. switching frequency
- 3 Hz
- Changeover time
- 12 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
- Explosion prevention and protection
- Zone 1 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 535930. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
