535931

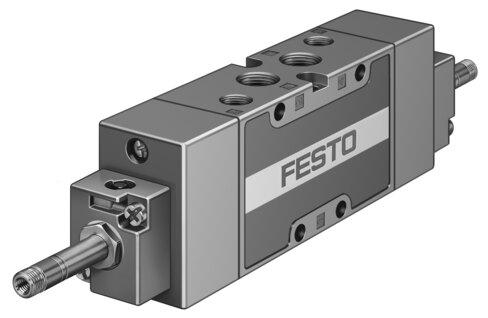

Name: Festo 535931 Air solenoid valve JMFH-5-1/4-B-EX
Brand: Festo

Air solenoid valve JMFH-5-1/4-B-EX

The Festo part number 535931 is an electrical 5/2-way bistable piston gate valve with a 32 mm width, a 10 mm nominal width, and a G1/4 pneumatic working port. It delivers a normal nominal flow rate of 1600 l/min and operates within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) using a soft sealing principle and an adjustable exhaust air function in any mounting position. Certified with CE and UKCA markings as per EU explosion protection and UK EX instructions, it features ATEX category II 2G for gas and II 2D for dust, EPL Db and Gb (GB) certifications, ignition protections Ex h IIC T4 Gb and Ex h IIIC T130°C Db, and an explosive ambient temperature range of -5°C to +40°C. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535931
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535931.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Width: 32 mm
Normal nominal ow rate (normalized to DIN 1343): 1600 l/min
Pneumatic working port: G1/4
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Structural design: Piston gate valve
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Nominal width: 10 mm
Width dimension: 33 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
b-value: 0.38
C value: 6.35 l/sbar
Max. switching frequency: 3 Hz
Changeover time: 14 ms
Max. positive test pulse with 0 signal: 2200 µs

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 535931. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
