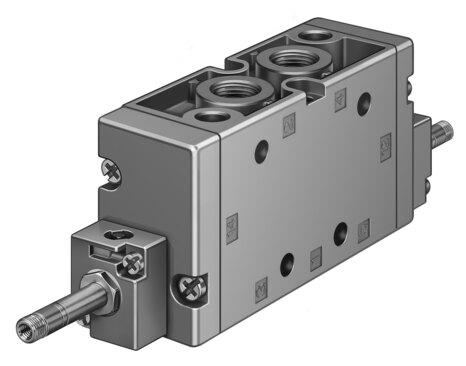

Name: Festo 535932 Air solenoid valve JMFH-5-3/8-B-EX
Brand: Festo

Air solenoid valve JMFH-5-3/8-B-EX

The Festo 535932 is a 40 mm wide 5/2-way bistable industrial component featuring a piston gate valve structural design with a mechanical spring reset method and adjustable exhaust air function. It delivers a normal nominal flow rate of 2000 l/min through G3/8 pneumatic working ports across an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar). Certified with an IP65 degree of protection for explosive ambient temperatures from -5°C to +40°C, this electrically actuated unit carries CE and UKCA markings compliant with EU explosion protection and UK EX directives, including ATEX category II 2G/II 2D and EPL Db/Gb ratings for gas and dust ignition protection. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535932
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535932.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Width: 40 mm
Normal nominal ow rate (normalized to DIN 1343): 2000 l/min
Pneumatic working port: G3/8
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Degree of protection: IP65
Nominal width: 12 mm
Width dimension: 41 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Max. switching frequency: 3 Hz
Changeover time: 12 ms
Max. positive test pulse with 0 signal: 2200 µs

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 535932. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
