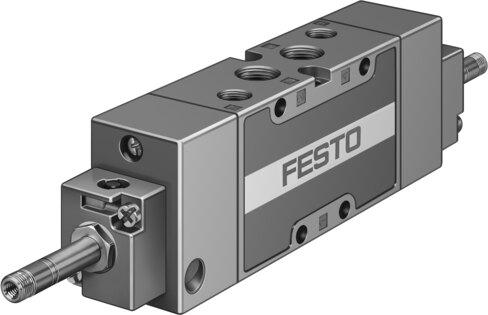

Name: Festo 535943 Air solenoid valve MFH-5/3E-1/4-B-EX
Brand: Festo

Air solenoid valve MFH-5/3E-1/4-B-EX

The Festo 535943 is a 32 mm wide electrical piston gate valve featuring a 5/3 exhausted function, mechanical spring reset, and G1/4 pneumatic working ports. Operating at 24V DC with an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), this component delivers a normal nominal flow rate of 1600 l/min through a 10 mm nominal width and adjustable exhaust air function. It carries CE and UKCA markings per explosion protection directives, featuring ATEX category II 2G for gas and II 2D for dust, along with EPL Db (GB) and EPL Gb (GB) certifications for explosive ambient temperatures between -5°C and +40°C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535943
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535943.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/3 exhausted
Actuation type: Electrical
Width: 32 mm
Normal nominal ow rate (normalized to DIN 1343): 1600 l/min
Pneumatic working port: G1/4
Operating voltage: 24V DC
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Nominal width: 10 mm
Width dimension: 33 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
b-value: 0.38
C value: 6.35 l/sbar
Max. switching frequency: 3 Hz
