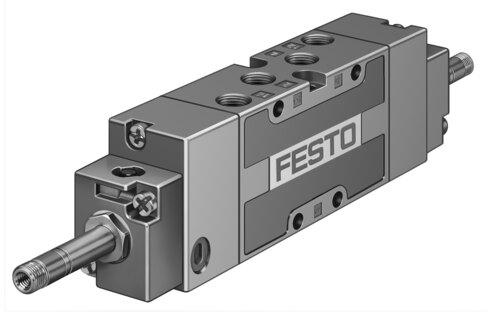

Reference imageConfirm configuration by manufacturer part number.
Festo
535948
Air solenoid valve MFH-5/3B-1/8-B-EX
The Festo 535948 is an electrical 5/3-way pressurized piston gate valve featuring a 26 mm width, G1/8 pneumatic working ports, and a normal nominal flow rate of 1000 l/min. This soft-sealing unit operates within a 3 bar to 10 bar pressure range, utilizes a mechanical spring reset, and provides an IP65 degree of protection across an explosive ambient temperature range of -5°C to +40°C. Certified for hazardous locations, it carries ATEX and UKCA markings with EPL Db and Gb ratings, supporting II 2G gas and II 2D dust categories along with Ex h IIC T4 Gb and Ex h IIIC T130°C Db ignition protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535948
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535948.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal width
- 8 mm
- Width dimension
- 27 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Max. switching frequency
- 3 Hz
- Switching time off
- 21 ms
- On switching time
- 23 ms
- Changeover time
- 16 ms
