Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

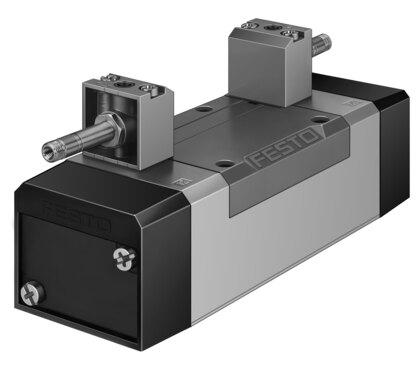

Reference imageConfirm configuration by manufacturer part number.
Festo
535971
Air solenoid valve MFH-5/3G-D-3-C-EX
The Festo 535971 is a 5/3-way closed electrical industrial component utilizing a piston gate valve structural design with a mechanical spring reset method and a nominal width of 14.5 mm. It features a normal nominal flow rate of 4100 l/min, a 65 mm width, a 71 mm width dimension, an IP65 degree of protection, and pneumatic working ports configured for a sub-base of size 3 as per ISO 5599-1 or G1/2 connections. Operating at a pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), the unit requires operating voltage via a separately ordered solenoid coil and carries CE and UKCA markings compliant with ATEX and UK EX directives for gas category II 2G (Ex h IIC T4 Gb) and dust category II 2D (Ex h IIIC T105°C Db) within an explosive ambient temperature range of -5°C to +40°C, alongside EPL Db and EPL Gb certifications outside the EU. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535971
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535971.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4100 l/min
- Pneumatic working port
- Sub-base, size 3 as per ISO 5599-1 | G1/2
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T105°C Db
- Explosive ambient temperature
- -5°C <= Ta <= +40°C
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Degree of protection
- IP65
- Nominal width
- 14.5 mm
- Width dimension
- 71 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 356
- Type of control
- Piloted
- Pilot air supply port
- Internal
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 535971. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
