535980

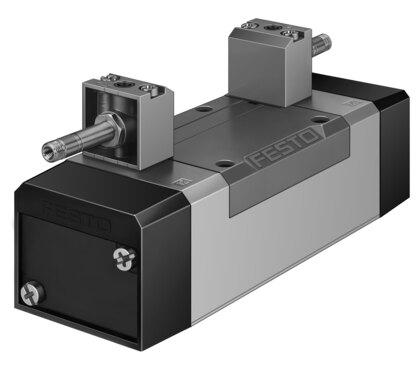

Name: Festo 535980 Air solenoid valve MFH-5/3E-D-3-S-C-EX
Brand: Festo

Air solenoid valve MFH-5/3E-D-3-S-C-EX

The Festo 535980 is an electrical 5/3 exhausted piston gate valve with a 65 mm width, a 14.5 mm nominal width, and a normal nominal flow rate of 4600 l/min according to DIN 1343. Featuring a mechanical spring reset and a pneumatic working port configured for a sub-base size 3 per ISO 5599-1 or G1/2, this component operates at pressures ranging from -0.09 MPa to 1.6 MPa (-0.9 bar to 16 bar) using a separately ordered solenoid coil. It carries CE and UKCA markings compliant with ATEX and UK EX directives, featuring II 2G gas and II 2D dust categories, IP65 protection, and an explosive ambient temperature range of -5°C to +40°C. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535980
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535980.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/3 exhausted
Actuation type: Electrical
Width: 65 mm
Normal nominal ow rate (normalized to DIN 1343): 4600 l/min
Pneumatic working port: Sub-base, size 3 as per ISO 5599-1 | G1/2
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T105°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Degree of protection: IP65
Nominal width: 14.5 mm
Width dimension: 71 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: Detenting via accessory | Non-detenting
ISO code: 369
Type of control: Piloted
Pilot air supply port: External

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 535980. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
