535987

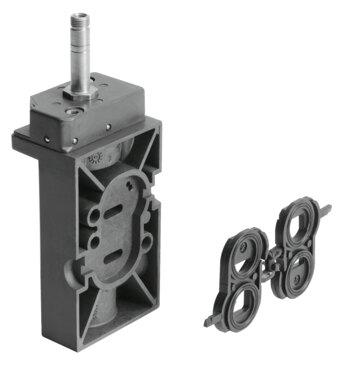

Name: Festo 535987 Air solenoid valve NVF3-MOH-5/2-K-1/4-EX
Brand: Festo

Air solenoid valve NVF3-MOH-5/2-K-1/4-EX

The Festo part number 535987 is a 53 mm wide industrial component featuring a 5/2- or 3/2-way monostable valve function with electrical actuation and a plate seat structural design. It delivers a normal nominal flow rate of 900 l/min through a sub-base pneumatic working port at an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar), utilizing a mechanical spring reset method and soft sealing principle with an adjustable exhaust air function. This unit includes ATEX category II 2G and II 2D certifications, UKCA marking according to UK EX instructions, and explosion protection ratings for gas (Ex h IIC T6 Gb) and dust (Ex h IIIC T70°C Db) within an explosive ambient temperature range of -5°C to +40°C, operating via a solenoid coil ordered separately. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535987
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535987.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2- or 3/2-way, monostable
Actuation type: Electrical
Width: 53 mm
Normal nominal ow rate (normalized to DIN 1343): 900 l/min
Pneumatic working port: Sub-base
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Structural design: Plate seat
Reset method: Mechanical spring
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6 Gb
Type of (ignition) protection for dust: Ex h IIIC T70°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Nominal width: 7 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: VDI/VDE 3845 (NAMUR)
Manual override: Detenting | Non-detenting
Type of control: Piloted
Flow direction: Non-reversible
Lap: Negative overlap
b-value: 0.33
C value: 4.2 l/sbar
Switching time oﬀ: 100 ms

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 535987. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
