Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

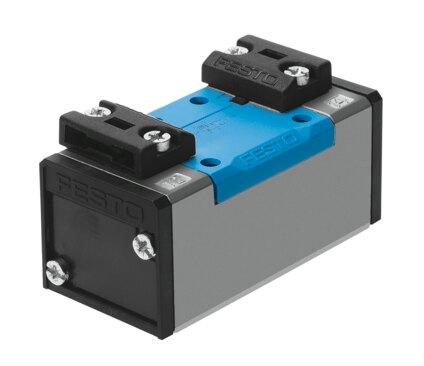

Reference imageConfirm configuration by manufacturer part number.
Festo
536007
Pneumatic valve VL-5/2-D-1-C-EX
The Festo part number 536007 is a 5/2-way monostable industrial component featuring a pneumatic actuation type and a piston gate valve structural design with a soft sealing principle. This 42 mm wide device delivers a normal nominal flow rate of 1200 l/min through an ISO 5599-1 size 1 sub-base or G1/4 pneumatic working port, operating within a pressure range of 0.2 MPa to 1.6 MPa (2 bar to 16 bar). Certified with CE and UKCA markings under ATEX category II 2G for gas (Ex h IIC T4 Gb) and II 2D for dust (Ex h IIIC T130°C Db), it functions at explosive ambient temperatures from -10°C to +60°C with a pneumatic spring reset method, an 8 mm nominal width, an adjustable exhaust air function, and EPL Gb and EPL Db explosion protection certification outside the EU. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536007
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536007.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Pneumatic
- Width
- 42 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic working port
- Sub-base, size 1 according to ISO 5599-1 | G1/4
- Operating pressure
- 0.2 MPa...1.6 MPa | 2 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Nominal width
- 8 mm
- Width dimension
- 43 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- None
- ISO code
- 102
- Type of control
- directly
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.2 MPa...1.6 MPa
- Pilot pressure
- 2 bar...16 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 536007. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
