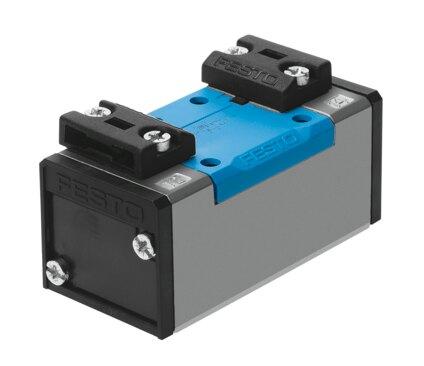

Name: Festo 536009 Pneumatic valve VL-5/2-D-3-C-EX
Brand: Festo

Pneumatic valve VL-5/2-D-3-C-EX

The Festo part number 536009 is a 5/2-way monostable industrial component featuring a pneumatic actuation type and a piston gate valve structural design with a soft sealing principle. This unit provides a normal nominal flow rate of 4500 l/min, a nominal width of 14.5 mm, an adjustable exhaust air function, and a pneumatic working port configured as a sub-base of size 3 according to ISO 5599-1 or G1/2. Operating within a pressure range of 0.2 MPa to 1.6 MPa (2 bar to 16 bar) and utilizing a pneumatic spring reset method, the 65 mm wide assembly carries CE and UKCA markings compliant with EU explosion protection and UK EX instructions for ATEX categories II 2G gas and II 2D dust across an explosive ambient temperature range of -10°C to +60°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 536009
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 536009.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Pneumatic
Width: 65 mm
Normal nominal ow rate (normalized to DIN 1343): 4500 l/min
Pneumatic working port: Sub-base, size 3 as per ISO 5599-1 | G1/2
Operating pressure: 0.2 MPa...1.6 MPa | 2 bar...16 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -10°C <= Ta <= +60°C
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Nominal width: 14.5 mm
Width dimension: 71 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: None
ISO code: 302
Type of control: directly
Flow direction: Non-reversible
Lap: Positive overlap
Pilot pressure MPa: 0.2 MPa...1.6 MPa
Pilot pressure: 2 bar...16 bar
