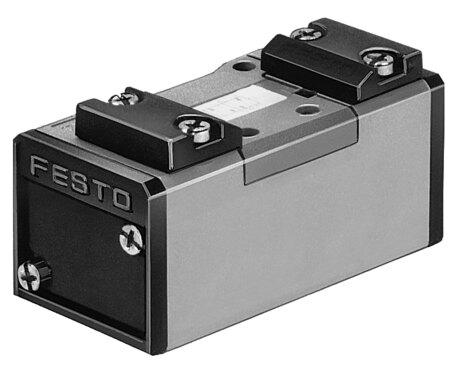

Name: Festo 536013 Pneumatic valve J-5/2-D-1-C-EX
Brand: Festo

Pneumatic valve J-5/2-D-1-C-EX

The Festo 536013 is a 42 mm wide bistable 5/2-way pneumatic industrial component featuring a piston gate valve structural design with an 8 mm nominal width and soft sealing principle. It delivers a normal nominal flow rate of 1200 l/min through an ISO 5599-1 size 1 sub-base or G1/4 pneumatic working port within an operating pressure range of -0.09 MPa to 1.6 MPa. Rated for explosive ambient temperatures between -10°C and +60°C, this unit carries ATEX and UKCA markings for gas and dust with Ex h IIC T4 Gb and Ex h IIIC T130°C Db ignition protection, along with EPL Gb and EPL Db certifications outside the EU. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 536013
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 536013.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Pneumatic
Width: 42 mm
Normal nominal ow rate (normalized to DIN 1343): 1200 l/min
Pneumatic working port: Sub-base, size 1 according to ISO 5599-1 | G1/4
Operating pressure: -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
Structural design: Piston gate valve
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -10°C <= Ta <= +60°C
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Nominal width: 8 mm
Width dimension: 43 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: None
ISO code: 101
Type of control: directly
Flow direction: Reversible
Lap: Positive overlap
Pilot pressure MPa: 0.2 MPa...1.6 MPa
Pilot pressure: 2 bar...16 bar
Changeover time: 6 ms
