536025

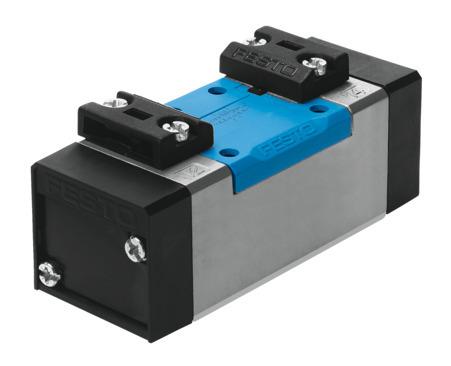

Name: Festo 536025 Pneumatic valve VL-5/3B-D-1-C-EX
Brand: Festo

Pneumatic valve VL-5/3B-D-1-C-EX

Engineered by Festo, the part number 536025 is a 42 mm wide pneumatic 5/3-way pressurized industrial component featuring a piston gate valve structural design and a mechanical spring reset method. This unit delivers a normal nominal flow rate of 1200 l/min through a nominal width of 8 mm, supporting an operating pressure range of -0.09 MPa to 1.6 MPa and an adjustable exhaust air function with a soft sealing principle. Certified with CE and UKCA markings under ATEX directives for gas and dust environments, the device operates within an explosive ambient temperature range of -10°C to +60°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 536025
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 536025.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/3-way, pressurized
Actuation type: Pneumatic
Width: 42 mm
Normal nominal ow rate (normalized to DIN 1343): 1200 l/min
Pneumatic working port: Sub-base, size 1 according to ISO 5599-1 | G1/4
Operating pressure: -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -10°C <= Ta <= +60°C
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Nominal width: 8 mm
Width dimension: 43 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: None
ISO code: 107
Type of control: directly
Flow direction: Reversible
Lap: Positive overlap
Pilot pressure MPa: 0.3 MPa...1.6 MPa
Pilot pressure: 3 bar...16 bar

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 536025. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
