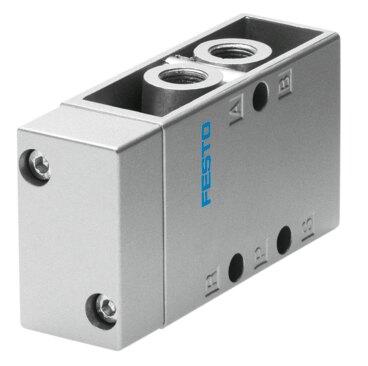

Reference imageConfirm configuration by manufacturer part number.
Festo
536032
Pneumatic valve VL-5-1/8-EX
The Festo 536032 is a monostable 5/2-way pneumatic valve featuring a 26 mm width, a 5 mm nominal width, and a plate seat structural design with an adjustable exhaust air function. It delivers a normal nominal flow rate of 500 l/min through G1/8 pneumatic working ports across an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) with a mechanical spring reset method. Certified for hazardous locations under ATEX category II 2G for gas (Ex h IIC T4 Gb) and II 2D for dust (Ex h IIIC T130°C Db), this IP65-rated component operates within explosive ambient temperatures from -10°C to +60°C and carries both CE and UKCA markings in accordance with respective EU and UK explosion protection directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536032
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536032.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Pneumatic
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 500 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Nominal width
- 5 mm
- Width dimension
- 27 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.12 MPa...1 MPa
- Pilot pressure
- 1.2 bar...10 bar
- Max. switching frequency
- 12 Hz
- Switching time off
- 16 ms
