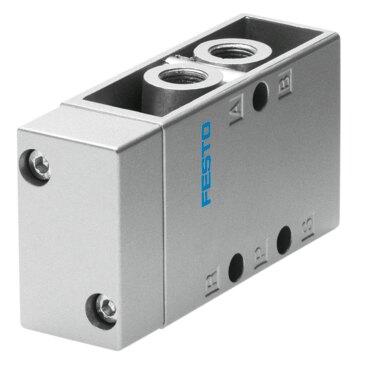

Name: Festo 536033 Pneumatic valve VL-5-1/4-EX
Brand: Festo

Pneumatic valve VL-5-1/4-EX

The Festo part number 536033 is a 30.5 mm wide pneumatic industrial component featuring a 5/2-way monostable valve function with a plate seat structural design, mechanical spring reset method, and an adjustable exhaust air function. It delivers a normal nominal flow rate of 800 l/min through G1/4 pneumatic working ports at an operating pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar) across a nominal width of 7 mm. Certified with IP65 degree of protection, CE and UKCA markings per ATEX and UK EX directives, this unit meets II 2G and II 2D gas and dust categories with Ex h IIC T4 Gb and Ex h IIIC T130°C Db ignition protection for explosive ambient temperatures between -10°C and +60°C, alongside EPL Gb (GB) and EPL Db (GB) certifications. Submit your exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 536033
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 536033.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Pneumatic
Width: 30.5 mm
Normal nominal ow rate (normalized to DIN 1343): 800 l/min
Pneumatic working port: G1/4
Operating pressure: 0 MPa...0.8 MPa | 0 bar...8 bar
Structural design: Plate seat
Reset method: Mechanical spring
Degree of protection: IP65
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -10°C <= Ta <= +60°C
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Nominal width: 7 mm
Width dimension: 32 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Type of control: directly
Pilot air supply port: External
Flow direction: Non-reversible
Lap: Negative overlap
Pilot pressure MPa: 0.12 MPa...1 MPa
Pilot pressure: 1.2 bar...10 bar
Switching time oﬀ: 11 ms
On switching time: 7 ms
