Reference imageConfirm configuration by manufacturer part number.
Festo
536036

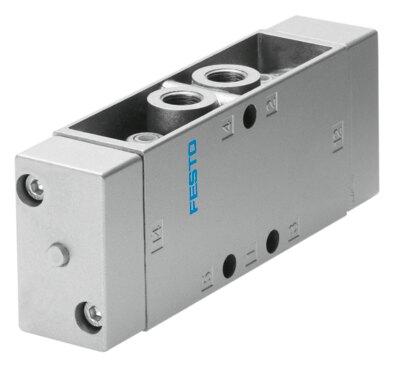

Pneumatic valve JH-5-1/4-EX
This Festo 536036 industrial component is a 5/2-way bistable pneumatic valve featuring a plate seat structural design, a 30.5 mm width, a 7 mm nominal width, and a G1/4 pneumatic working port. It delivers a normal nominal flow rate of 1100 l/min under an operating pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar) with a soft sealing principle and adjustable exhaust air function. Certified with an IP65 degree of protection, CE and UKCA markings per EX instructions, and ATEX categories II 2G and II 2D for explosive ambient temperatures between -10°C and +60°C, it includes ignition protection types Ex h IIC T4 Gb for gas and Ex h IIIC T130°C Db for dust, alongside EPL Gb (GB) and EPL Db (GB) certifications outside the EU. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536036
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536036.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Pneumatic
- Width
- 30.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Structural design
- Plate seat
- Degree of protection
- IP65
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Nominal width
- 7 mm
- Width dimension
- 32 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.12 MPa...1 MPa
- Pilot pressure
- 1.2 bar...10 bar
- Max. switching frequency
- 12 Hz
- Changeover time
- 7 ms
- Explosion prevention and protection
- Zone 1 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 536036. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
