Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

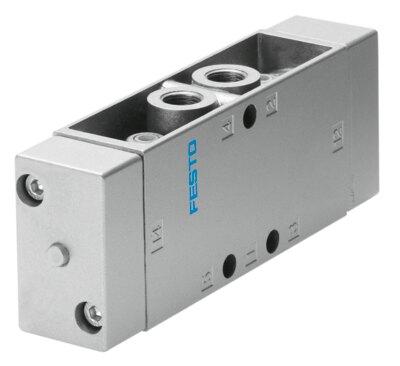

Reference imageConfirm configuration by manufacturer part number.
Festo
536037
Pneumatic valve JH-5-1/2-EX
The Festo 536037 is a 52 mm wide bistable pneumatic 5/2-way industrial component featuring a plate seat structural design and a G1/2 pneumatic working port. It delivers a normal nominal flow rate of 4500 l/min across an operating pressure range of 0 to 1 MPa (0 to 10 bar), utilizing an adjustable exhaust air function with a soft sealing principle and any mounting position. Certified with CE and UKCA markings for explosive environments, it complies with ATEX categories II 2G and II 2D, featuring Ex h IIC T4 Gb gas and Ex h IIIC T130°C dust ignition protection across an explosive ambient temperature range of -10°C to +60°C, alongside EPL Gb (GB) and EPL Db (GB) certifications outside the EU. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536037
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536037.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Pneumatic
- Width
- 52 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4500 l/min
- Pneumatic working port
- G1/2
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Structural design
- Plate seat
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Nominal width
- 14 mm
- Width dimension
- 69 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.12 MPa...1 MPa
- Pilot pressure
- 1.2 bar...10 bar
- b-value
- 0.3
- Max. switching frequency
- 12 Hz
- Changeover time
- 3 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 536037. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
