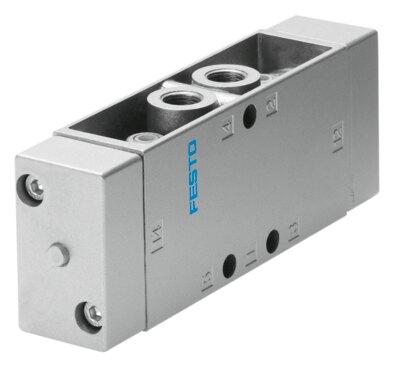

Name: Festo 536038 Pneumatic valve JDH-5-1/8-EX
Brand: Festo

Pneumatic valve JDH-5-1/8-EX

The Festo 536038 is a 26 mm wide pneumatic industrial component featuring a 5/2-way, dominant, bistable valve function with a plate seat structural design and soft sealing principle. This unit provides a nominal width of 5 mm, a normal nominal flow rate of 600 l/min, G1/8 pneumatic working ports, and an adjustable exhaust air function within an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar). Certified with IP65 degree of protection, it carries CE and UKCA markings per EU and UK explosion protection directives, featuring ATEX categories II 2G for gas (Ex h IIC T4 Gb) and II 2D for dust (Ex h IIIC T130°C Db) for an explosive ambient temperature range of -10°C <= Ta <= +60°C, alongside EPL Gb (GB) and EPL Db (GB) certifications outside the EU. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 536038
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 536038.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, dominant, bistable
Actuation type: Pneumatic
Width: 26 mm
Normal nominal ow rate (normalized to DIN 1343): 600 l/min
Pneumatic working port: G1/8
Operating pressure: 0 MPa...1 MPa | 0 bar...10 bar
Structural design: Plate seat
Degree of protection: IP65
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -10°C <= Ta <= +60°C
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Nominal width: 5 mm
Width dimension: 27 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Type of control: directly
Pilot air supply port: External
Flow direction: Non-reversible
Lap: Negative overlap
Pilot pressure MPa: 0.23 MPa...1 MPa
Pilot pressure: 2.3 bar...10 bar
Max. switching frequency: 12 Hz
Switching time oﬀ: 16 ms
On switching time: 9 ms
