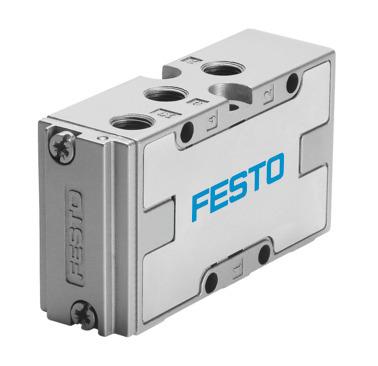

Name: Festo 536041 Pneumatic valve VL-5-1/4-B-EX
Brand: Festo

Pneumatic valve VL-5-1/4-B-EX

The Festo 536041 is a 32 mm wide pneumatic industrial component featuring a monostable 5/2-way valve function with a plate seat structural design, soft sealing principle, and mechanical spring reset method. It delivers a normal nominal flow rate of 1300 l/min through G1/4 pneumatic working ports at an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) and incorporates an adjustable exhaust air function with a 7 mm nominal width. Certified with CE and UKCA markings as per EU explosion protection and UK EX instructions, this unit includes ATEX category II 2G for gas and II 2D for dust, featuring Ex h IIC T4 Gb and Ex h IIIC T130°C Db ignition protection types for explosive ambient temperatures between -10°C and +60°C, alongside EPL Gb (GB) and EPL Db (GB) certifications. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 536041
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 536041.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Pneumatic
Width: 32 mm
Normal nominal ow rate (normalized to DIN 1343): 1300 l/min
Pneumatic working port: G1/4
Operating pressure: 0 MPa...1 MPa | 0 bar...10 bar
Structural design: Plate seat
Reset method: Mechanical spring
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T130°C Db
Explosive ambient temperature: -10°C <= Ta <= +60°C
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Nominal width: 7 mm
Width dimension: 33 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: None
Type of control: directly
Pilot air supply port: External
Flow direction: Non-reversible
Lap: Negative overlap
Pilot pressure MPa: 0.15 MPa...1 MPa
Pilot pressure: 1.5 bar...10 bar
b-value: 0.29
C value: 5.5 l/sbar

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 536041. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
