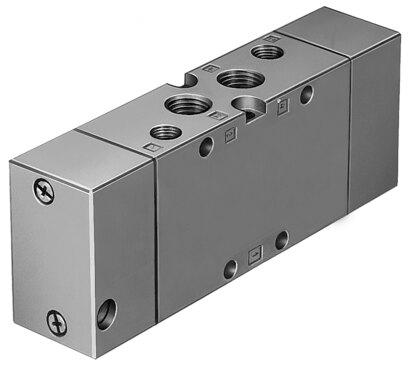

Reference imageConfirm configuration by manufacturer part number.
Festo
536053
Pneumatic valve VL-5/3B-1/4-B-EX
Engineered with a 32 mm width and a piston gate valve structural design, this Festo 536053 industrial component features a 5/3-way pressurized valve function with pneumatic actuation and mechanical spring reset. The unit delivers a normal nominal flow rate of 1600 l/min through G1/4 pneumatic working ports, operating within a pressure range of -0.09 MPa to 1 MPa. Certified with ATEX and UKCA markings for explosive environments under categories II 2G and II 2D, it includes an adjustable exhaust air function and soft sealing principle. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536053
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536053.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Pneumatic
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Nominal width
- 10 mm
- Width dimension
- 33 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- b-value
- 0.38
- C value
- 6.35 l/sbar
