536072

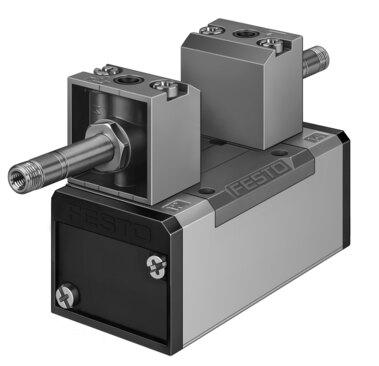

Name: Festo 536072 Air solenoid valve JMFDH-5/2-D-2-C-EX
Brand: Festo

Air solenoid valve JMFDH-5/2-D-2-C-EX

The Festo 536072 is a 5/2-way, dominant, bistable industrial component featuring a piston gate valve structural design, electrical actuation, and a 54 mm width. It delivers a normal nominal flow rate of 2300 l/min through a G3/8 or ISO 5599-1 size 2 sub-base pneumatic working port, operating within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) and utilizing a separately ordered solenoid coil for operating voltage. Rated for hazardous environments with IP65 protection, ATEX category II 2G and II 2D certifications, and UKCA EX compliance, this unit functions at an explosive ambient temperature range of -5°C to +40°C with an adjustable exhaust air function and an 11.5 mm nominal width. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 536072
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 536072.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, dominant, bistable
Actuation type: Electrical
Width: 54 mm
Normal nominal ow rate (normalized to DIN 1343): 2300 l/min
Pneumatic working port: Sub-base, size 2 according to ISO 5599-1 | G3/8
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Structural design: Piston gate valve
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T105°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Degree of protection: IP65
Nominal width: 11.5 mm
Width dimension: 56 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: Detenting via accessory | Non-detenting
ISO code: 269
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 536072. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
