536073

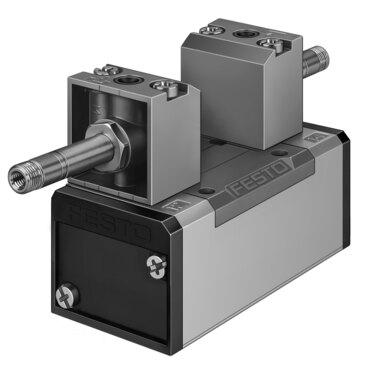

Name: Festo 536073 Air solenoid valve JMFDH-5/2-D-3-C-EX
Brand: Festo

Air solenoid valve JMFDH-5/2-D-3-C-EX

The Festo part number 536073 is an electrical actuation 5/2-way dominant, bistable industrial component featuring a piston gate valve structural design with a 65 mm width, a 14.5 mm nominal width, a 71 mm width dimension, and an adjustable exhaust air function. It delivers a normal nominal flow rate of 4500 l/min through a pneumatic working port configured as a sub-base, size 3 as per ISO 5599-1 or G1/2, within an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) and requires a solenoid coil ordered separately for operating voltage. Certified with IP65 degree of protection, CE and UKCA markings per EU and UK EX instructions, ATEX categories II 2G for gas and II 2D for dust, ignition protection types Ex h IIC T4 Gb and Ex h IIIC T105°C Db, EPL Db (GB) and EPL Gb (GB) certifications outside the EU, and an explosive ambient temperature range of -5°C to +40°C. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 536073
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 536073.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, dominant, bistable
Actuation type: Electrical
Width: 65 mm
Normal nominal ow rate (normalized to DIN 1343): 4500 l/min
Pneumatic working port: Sub-base, size 3 as per ISO 5599-1 | G1/2
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Structural design: Piston gate valve
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T105°C Db
Explosive ambient temperature: -5°C <= Ta <= +40°C
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Degree of protection: IP65
Nominal width: 14.5 mm
Width dimension: 71 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: Detenting via accessory | Non-detenting
ISO code: 369
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 536073. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
