Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

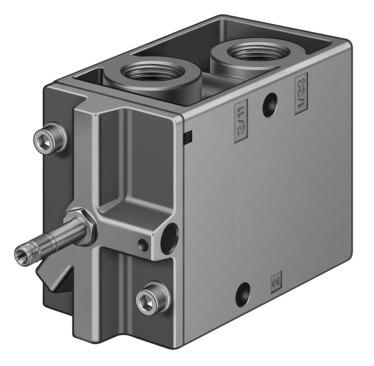

Reference imageConfirm configuration by manufacturer part number.
Festo
536192
Air solenoid valve MOFH-3-3/4-EX
The Festo 536192 is an electrical 3/2-way monostable open industrial component featuring a plate seat structural design with a 68 mm width, a 19 mm nominal width, and a normal nominal flow rate of 7500 l/min at pneumatic working ports of G3/4. This unit operates within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar), utilizes an adjustable exhaust air function with a mechanical spring reset method, and requires a separately ordered solenoid coil for operating voltage while achieving an IP65 degree of protection. Certified for hazardous locations under ATEX category II 2G for gas (Ex h IIC T4 Gb) and II 2D for dust (Ex h IIIC T130°C Db) within an explosive ambient temperature range of -5°C to +40°C, it also carries EPL Db (GB) and EPL Gb (GB) certifications alongside CE and UKCA markings. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536192
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536192.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 68 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 7500 l/min
- Pneumatic working port
- G3/4
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T130°C Db
- Explosive ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal width
- 19 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Switching time off
- 29 ms
- On switching time
- 40 ms
- Max. positive test pulse with 0 signal
- 2200 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 536192. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
