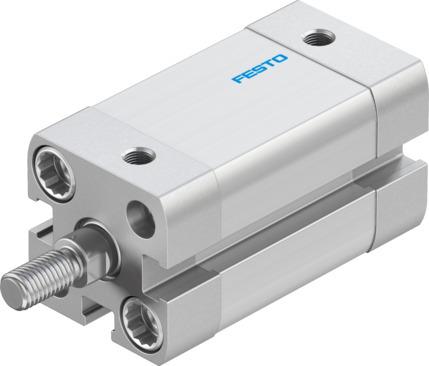

Reference imageConfirm configuration by manufacturer part number.
Festo
536218
Compact cylinder ADN-16- -
The Festo part number 536218 is a double-acting industrial component featuring a 16 mm piston diameter, a stroke length ranging from 1 mm to 300 mm, and a profile barrel structural design based on the ISO 21287 norm. Operating within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar or 14.5 psi to 145 psi), this component utilizes elastic cushioning rings or pads at both ends and incorporates position sensing via a proximity switch for any mounting position. It includes EX protection approval conforming to ATEX and UKEX directives for Zones 1, 2, and 21, along with variants excluding specific metals by mass and supporting diverse operational configurations. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536218
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536218.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...300 mm
- Piston diameter
- 16 mm
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils. | Stroke adjustment advancing | Weld spatter protection | Internal thread on piston rod | Piston rod with external hexagon | Module for reaching a specic end position in case of a pressure failure | Transverse load increased | Reinforced piston rod | Uniform, slow movement | Low friction | Through piston rod | Through, hollow piston rod | Temperature range 0 to + 150°C | Additional PTFE piston guide
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 536218. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
