Name: Festo 536233 Compact cylinder ADN-20- -
Brand: Festo

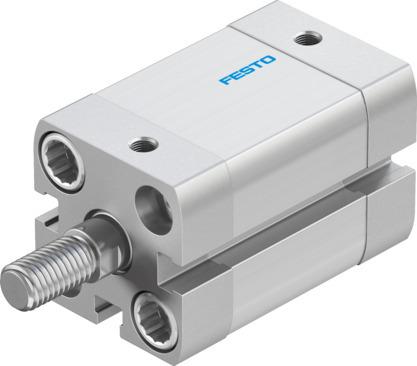

Compact cylinder ADN-20- -

The Festo part number 536233 is a double-acting industrial component featuring a 20 mm piston diameter, an adjustable stroke ranging from 1 mm to 300 mm, and an operating pressure of 0.06 MPa to 1 MPa (0.6 bar to 10 bar). Conforming to ISO 21287, this structural design utilizes a piston, piston rod, and profile barrel with elastic cushioning rings/pads at both ends alongside self-adjusting pneumatic end-position cushioning for any mounting position. Position sensing is achieved via proximity switch, and available variants include ATEX EX protection approval, Zone 1 explosion prevention and protection, CE and UKCA markings, EPL Db (GB) and EPL Gb (GB) certifications outside the EU, and multiple specialized mechanical and thermal configurations. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 536233
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 536233.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 1 mm...300 mm
Piston diameter: 20 mm
Cushioning: Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning
Mounting position: Any
Conforms to standard: ISO 21287
Structural design: Piston | Piston rod | Prole barrel
Position sensing: Via proximity switch
Variants: EX protection approval (ATEX) | Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils. | Stroke adjustment advancing | Stroke adjustment extending/at front | Weld spatter protection | Internal thread on piston rod | Piston rod with external hexagon | Module for reaching a specic end position in case of a pressure failure | Transverse load increased | High corrosion protection | Reinforced piston rod | Uniform, slow movement | Low friction | Through piston rod | Through, hollow piston rod | Temperature range 0 to + 150°C | Temperature range -40 to 80°C | Additional PTFE piston guide
Operating pressure: 0.06 MPa...1 MPa | 0.6 bar...10 bar
Mode of operation: Double-acting
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Explosion prevention and protection: Zone 1 (ATEX)
