Festo
536309

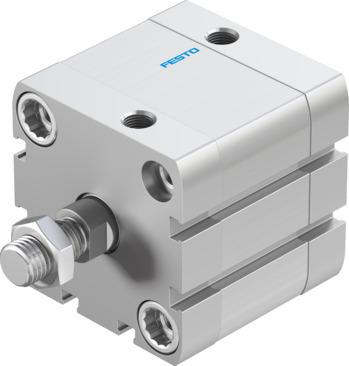

Compact cylinder ADN-50- -
The Festo 536309 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke ranging from 1 mm to 400 mm, and a profile barrel structural design conforming to ISO 21287. Operating at pressures from 0.06 MPa to 1 MPa (0.6 bar to 10 bar) in any mounting position, this unit utilizes elastic cushioning rings at both ends alongside self-adjusting pneumatic end-position cushioning for motion control. Position sensing is accomplished via proximity switch, and the component includes ATEX Zone 1 explosion protection certification with CE and UKCA markings. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536309
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536309.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...400 mm
- Piston diameter
- 50 mm
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils. | Stroke adjustment advancing | Stroke adjustment extending/at front | Weld spatter protection | Internal thread on piston rod | Piston rod with external hexagon | Module for reaching a specic end position in case of a pressure failure | Transverse load increased | High corrosion protection | Reinforced piston rod | Uniform, slow movement | Low friction | Through piston rod | Through, hollow piston rod | Temperature range 0 to + 150°C | Temperature range -40 to 80°C | Additional PTFE piston guide
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX)
