Festo
536377

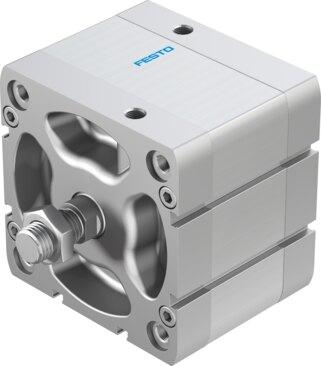

Compact cylinder ADN-100-25-A-P-A
The Festo 536377 is a double-acting industrial component with a 100 mm piston diameter, a 25 mm stroke, and an M16x1.5 external piston rod thread conforming to ISO 21287. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a pressure range of 0.06 MPa to 1 MPa, this unit features elastic cushioning rings at both ends, position sensing via proximity switch, and an ambient temperature range of -20 °C to 80 °C. It delivers a moving mass of 658 g with theoretical forces of 4712 N advancing and 4524 N retracting at 6 bar, while maintaining a moderate corrosion resistance class (CRC 2) and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536377
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536377.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston rod end
- External thread
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 2.5 J
- Theoretical force at 6 bar, retracting
- 4524 N
- Theoretical force at 6 bar, advancing
- 4712 N
- Moving mass
- 658 g
- Product weight
- 1988 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Flange screws material
- Steel
- Cover material
- Die-cast aluminum, coated
- Seals material
- TPE-U(PUR)
- Piston rod material
- High-alloy steel
