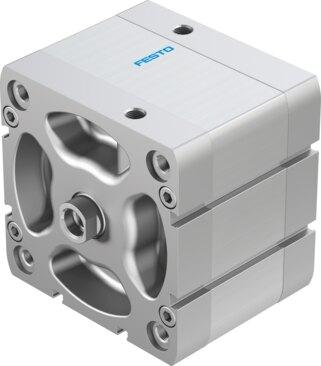

Reference imageConfirm configuration by manufacturer part number.
Festo
536387
Compact cylinder ADN-100-25-I-P-A
This Festo 100 mm piston diameter double-acting industrial component features a 25 mm stroke, M12 internal thread piston rod end, and elastic cushioning rings or pads at both ends. Conforming to ISO 21287, the unit operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a 0.06 MPa to 1 MPa pressure range and supports oil lubrication. It delivers a moving mass of 504 g, 2.5 J impact energy in the end positions, and theoretical forces of 4524 N retracting and 4712 N advancing at 6 bar across a -20 °C to 80 °C ambient temperature range with any mounting position and position sensing via proximity switch. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536387
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536387.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M12
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston rod end
- Internal thread
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 2.5 J
- Theoretical force at 6 bar, retracting
- 4524 N
- Theoretical force at 6 bar, advancing
- 4712 N
- Moving mass
- 504 g
- Product weight
- 1834 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Flange screws material
- Steel
- Cover material
- Die-cast aluminum, coated
- Seals material
- TPE-U(PUR)
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 536387. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
