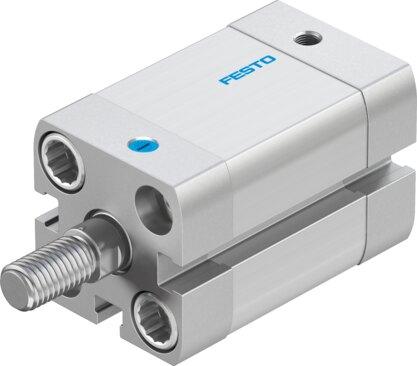

Reference imageConfirm configuration by manufacturer part number.
Festo
536416
Compact cylinder AEN-20
The Festo 536416 is an ISO 21287 industrial component featuring a 20 mm piston diameter, a 1 mm to 25 mm stroke, and a profile barrel structural design with elastic cushioning rings at both ends. Operating on compressed air within a pressure range of 1 bar to 10 bar, this single-acting unit delivers a theoretical advancing force of 152 N and a retracting force of 105 N at 6 bar. It functions across an ambient temperature range of -20 °C to 120 °C and utilizes position sensing via proximity switch with flexible mounting configurations including through-hole, internal thread, or accessories. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536416
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536416.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...25 mm
- Piston diameter
- 20 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Improved running performance | Extended external thread piston rod | Special thread on piston rod | Extended piston rod | With anti-twist protection | Heat-resistant seals max. 120°C | Laser etched rating plate | Pulling | Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Pushing | Single-acting | Pulling
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Theoretical force at 6 bar, retracting
- 105 N
- Theoretical force at 6 bar, advancing
- 152 N
- Weight surcharge per 10 mm piston rod extension
- 6 g
- Weight surcharge per 10 mm piston rod thread extension
- 4 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 536416. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
