Festo
536417

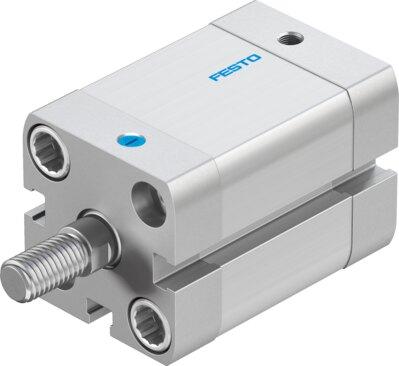

Compact cylinder AEN-25- -
The Festo 536417 is an ISO 21287 compliant industrial component featuring a 25 mm piston diameter, an adjustable stroke from 1 mm to 25 mm, and elastic cushioning rings or pads at both ends. Operating within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar) and temperatures from -20 °C to 120 °C, this single-acting unit delivers a theoretical retracting force of 196 N and an advancing force of 246 N at 6 bar using compressed air per ISO 8573-1:2010 [7:4:4]. Built with a profile barrel, piston, and piston rod, it supports any mounting position via through-holes, internal threads, or optional accessories, and accommodates position sensing through proximity switches alongside various configurable variants. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536417
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536417.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...25 mm
- Piston diameter
- 25 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Improved running performance | Extended external thread piston rod | Special thread on piston rod | Extended piston rod | With anti-twist protection | Heat-resistant seals max. 120°C | Laser etched rating plate | Pulling | Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Pushing | Single-acting | Pulling
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Theoretical force at 6 bar, retracting
- 196 N
- Theoretical force at 6 bar, advancing
- 246 N
- Weight surcharge per 10 mm piston rod extension
- 6 g
- Weight surcharge per 10 mm piston rod thread extension
- 4 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
