Festo
536419

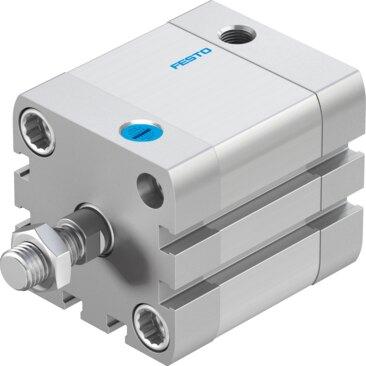

Compact cylinder AEN-40- -
The Festo 536419 is an ISO 21287 compliant industrial component featuring a 40 mm piston diameter, an adjustable stroke range from 1 mm to 25 mm, and elastic cushioning rings or pads at both ends. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 1 bar to 10 bar, this single-acting unit delivers a theoretical retracting force of 606 N and an advancing force of 676 N at 6 bar. It accommodates any mounting position using through-holes, internal threads, or optional accessories while providing position sensing via proximity switch across an ambient temperature range of -20 °C to 120 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 536419
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 536419.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...25 mm
- Piston diameter
- 40 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Improved running performance | Extended external thread piston rod | Special thread on piston rod | Extended piston rod | With anti-twist protection | Heat-resistant seals max. 120°C | Laser etched rating plate | Pulling | Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Pushing | Single-acting | Pulling
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Theoretical force at 6 bar, retracting
- 606 N
- Theoretical force at 6 bar, advancing
- 676 N
- Weight surcharge per 10 mm piston rod extension
- 9 g
- Weight surcharge per 10 mm piston rod thread extension
- 6 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
