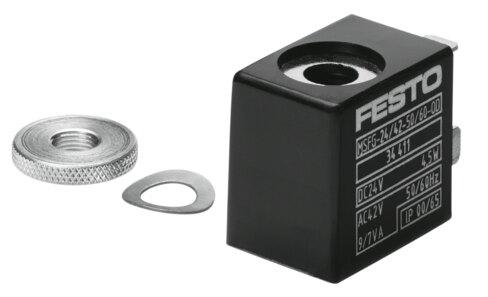

Name: Festo 536931 Solenoid coil MSFG-24-EX
Brand: Festo

Solenoid coil MSFG-24-EX

The Festo 536931 is an industrial component weighing 55 g with an any mounting position and a 100% duty cycle. Featuring a 24 V DC, 4.5 W coil with +/- 10% permissible voltage fluctuations, it includes a 3-pin electrical connection using plug tags with a connection diagram as per Festo standard for MSSD-F, a max. tightening torque of socket of 0.4 Nm, and mounting via knurled nut. Certified for Zone 2 and 22 explosive atmospheres under ATEX and CN directives with an IP65 degree of protection, it operates within an ambient temperature range of -5 °C to 40 °C, meeting VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 536931
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 536931.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Min. pick-up time: 10 ms
Duty cycle: 100%
Coil characteristics: 24 V DC: 4.5 W
Permissible voltage uctuations: +/- 10%
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
Explosion protection certication outside the EU: EPL Dc (CN) | EPL Gc (CN)
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (CN) | Zone 22 (ATEX) | Zone 22 (CN)
ATEX category gas: II 3G
ATEX category for dust: II 3D
Type of ignition protection for gas: Ex nA IIC T4 X Gc
Type of (ignition) protection for dust: Ex tc IIIC T130°C X Dc IP65
Explosive ambient temperature: -5°C <= Ta <= +40°C
LABS (PWIS) conformity: VDMA24364-B2-L
Degree of protection: IP65
Ambient temperature: -5 °C...40 °C
Max. tightening torque of socket: 0.4 Nm
Product weight: 55 g
Electrical connection: 3-pin | Plug ags with connection diagram as per Festo standard for MSSD-F
Type of mounting: With knurled nut
Note on materials: RoHS compliant
Solenoid coil material: Duroplast | Copper | Steel
Material of winding: Copper
