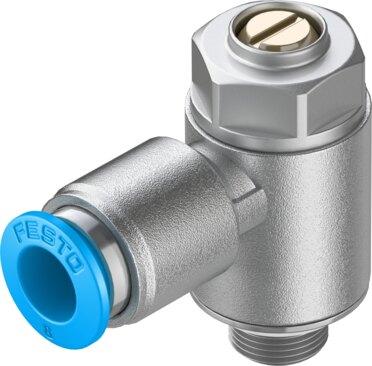

Name: Festo 537076 One-way flow control valve GRLA-1/8-QS-8-MF-D
Brand: Festo

One-way flow control valve GRLA-1/8-QS-8-MF-D

The Festo industrial component, part number 537076, is a one-way flow control valve featuring a QS-8 pneumatic connection 1, a G1/8 pneumatic connection 2, and a screw-in mounting design with an external thread. It delivers a standard nominal flow rate of 475 l/min in the flow control direction and between 325 l/min and 500 l/min in the non-return direction, operating within a pressure range of 0.2 bar to 10 bar across ambient temperatures of -10 °C to 60 °C. Operating with compressed air as per ISO 8573-1:2010 [7:4:4], this component supports oil lubrication and conforms to VDMA24364-B1/B2-L LABS standards while achieving ISO 14644-1 Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 537076
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 537076.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: One-way ow control function
Pneumatic connection 1: QS-8
Pneumatic connection 2: G1/8
Type of mounting: Screw-in | With external thread
Standard nominal ow rate in ow control direction: 475 l/min
Standard nominal ow rate in non-return direction: 325 l/min...500 l/min
Ambient temperature: -10 °C...60 °C
Maritime classication: See certicate
Mounting position: Any
Operating pressure for entire temperature range: 0.2 bar...10 bar
Standard ow rate in ow control direction 6 -> 0 bar: 720 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 610 l/min...760 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Storage temperature: -10 °C...40 °C
Temperature of medium: -10 °C...60 °C
Nominal tightening torque: 3 Nm
Tolerance for nominal tightening torque: ±10%
Product weight: 32 g
Note on materials: RoHS compliant
Seals material: NBR
Hollow bolt material: Wrought aluminum alloy | Anodized
Releasing ring material: POM
