537128

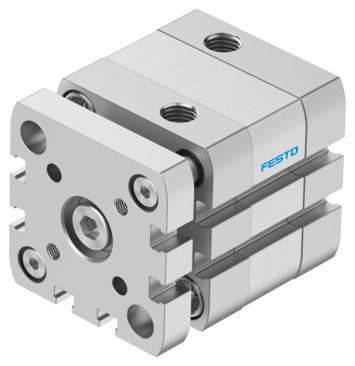

Name: Festo 537128 Compact cylinder ADNGF-40
Brand: Festo

Compact cylinder ADNGF-40

The Festo 40 mm piston diameter industrial component operates as a double-acting unit based on ISO 21287 with a stroke range of 5 mm to 300 mm and an operating pressure of 0.1 MPa to 1 MPa (1 bar to 10 bar). Its structural design incorporates a piston, piston rod, profile barrel, and a guide rod with a yoke for protection against torsion, featuring elastic cushioning rings/pads at both ends alongside self-adjusting pneumatic end-position cushioning and position sensing via proximity switch. Certified for explosive atmospheres with ATEX and UKCA markings covering Zone 1, Zone 2, Zone 21, and Zone 22, it carries II 2G and II 2D categories with Ex h IIC T4 Gb and Ex h IIIC T120°C Db ignition protection types for an ambient temperature range of -20°C to +60°C. Available variants include EX protection approval, stroke adjustment advancing, low friction, a through, hollow piston rod, and a temperature range of 0 to +150°C for any mounting position. Submit the exact part number, quantity, and application requirements to request a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 537128
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 537128.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 5 mm...300 mm
Piston diameter: 40 mm
Based on norm: ISO 21287
Cushioning: Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning
Mounting position: Any
Structural design: Piston | Piston rod | Prole barrel
Position sensing: Via proximity switch
Variants: EX protection approval (ATEX) | Stroke adjustment advancing | Low friction | Through, hollow piston rod | Temperature range 0 to + 150°C
Protection against torsion/guide: Guide rod with yoke
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Explosion prevention and protection: Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T120°C Db
Explosive ambient temperature: -20°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 537128. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
