Festo
537130

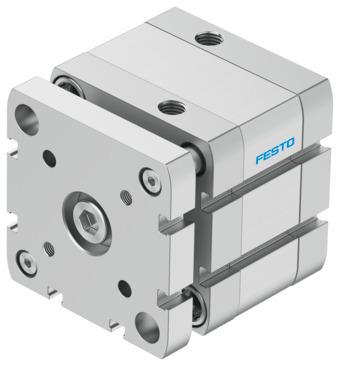

Compact cylinder ADNGF-63- -
The Festo 537130 is a double-acting industrial component built on the ISO 21287 norm featuring a 63 mm piston diameter, a stroke range of 5 mm to 300 mm, and a profile barrel structural design with a piston and piston rod. Operating between 0.1 MPa and 1 MPa (1 bar to 10 bar), this unit incorporates elastic cushioning rings at both ends alongside self-adjusting pneumatic end-position cushioning, position sensing via proximity switch, and any mounting position capability. Certified for explosive atmospheres with ATEX and UKEX compliance for gas Zone 1/2 and dust Zone 21/22, it supports variants including ATEX EX protection, stroke adjustment advancing, low friction, through hollow piston rod, and a temperature range of 0 to +150°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537130
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537130.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm...300 mm
- Piston diameter
- 63 mm
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends | Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Stroke adjustment advancing | Low friction | Through, hollow piston rod | Temperature range 0 to + 150°C
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T120°C Db
- Explosive ambient temperature
- -20°C <= Ta <= +60°C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 537130. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
