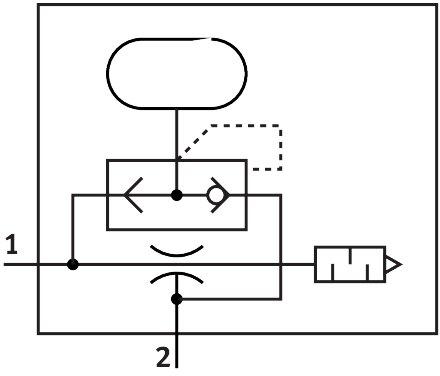

Reference imageConfirm configuration by manufacturer part number.
Festo
537225
Vacuum generator VN-05-H-T3-PI4-VI4-RO1-A
The Festo 537225 is a T-shaped industrial component featuring a 0.45 mm Laval nozzle nominal width, a 14 mm width dimension, an open muffler construction type, and an integrated pneumatic ejector pulse valve. This standard ejector delivers high negative pressure with a maximum vacuum of 92%, a maximum suction rate of 7.2 l/min at atmospheric conditions, and an operating pressure range of 1 bar to 8 bar. It is designed for compressed air operation conforming to ISO 8573-1:2010 [7:4:4] without oil lubrication, and features a moderate corrosion resistance class of CRC 2 along with a medium temperature range of 0 °C to 60 °C in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537225
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537225.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 14 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- Standard | High negative pressure
- Integrated function
- Ejector pulse valve, pneumatic | Muffler open
- Structural design
- T-shape
- Operating pressure for max. suction rate
- 3 bar
- Operating pressure
- 1 bar...8 bar
- Operating pressure for max. vacuum
- 4.9 bar
- Max. vacuum
- 92 %
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 7.2 l/min
- Air supply time at nominal operating pressure
- 3.63 s
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Cleaning advice
- Soap suds
- Noise level at nominal operating pressure
- 56 dB(A)
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 0.5 Nm
- Product weight
- 49 g
- Type of mounting
- With through-hole | With DIN rail | With accessories
- Pneumatic connection 1
- G1/8
- Pneumatic connection 3
- Muffler open
- Vacuum connection
- G1/8
