Festo
537226

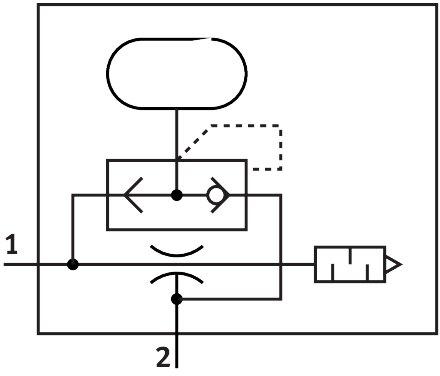

Vacuum generator VN-05-L-T3-PI4-VI4-RO1-A
The Festo part number 537226 is a T-shaped industrial component featuring a 0.45 mm nominal width Laval nozzle, a 14 mm width dimension, and an open muffle construction type with an integrated pneumatic ejector pulse valve. Operating within a pressure range of 1 bar to 8 bar with a nominal operating pressure of 6 bar, it delivers standard and high suction volume characteristics alongside a maximum suction rate of 13.6 l/min at a 5 bar operating pressure for max suction rate. Constructed with a moderate corrosion stress rating and VDMA24364-B1/B2-L LABS conformity, this unit operates on compressed air per ISO 8573-1:2010 [7:4:4] within a medium and ambient temperature range of 0 °C to 60 °C while producing a noise level of 52 dB(A) at nominal operating pressure. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537226
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537226.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 14 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- Standard | High suction volume
- Integrated function
- Ejector pulse valve, pneumatic | Muffler open
- Structural design
- T-shape
- Operating pressure for max. suction rate
- 5 bar
- Operating pressure
- 1 bar...8 bar
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 13.6 l/min
- Air supply time at nominal operating pressure
- 1.93 s
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Cleaning advice
- Soap suds
- Noise level at nominal operating pressure
- 52 dB(A)
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 0.5 Nm
- Product weight
- 49 g
- Type of mounting
- With through-hole | With DIN rail | With accessories
- Pneumatic connection 1
- G1/8
- Pneumatic connection 3
- Muffler open
- Vacuum connection
- G1/8
- Material of connecting thread
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 537226. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
