Festo
537254

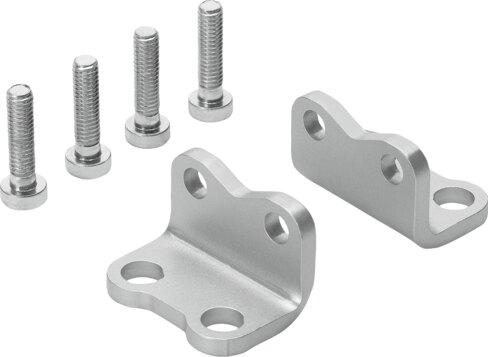

Foot mounting HNA-20-R3
The Festo 537254 is an industrial component of size 20 built on the ISO 21287 norm, featuring high corrosion protection with a corrosion resistance class (CRC) of 3 and VDMA24364-B2-L LABS conformity. Weighing 84 g, it includes RoHS compliant materials and a steel bracket with a protective coating, while excluding certain copper, zinc, or nickel metals to maintain suitability for the production of Li-ion batteries. Submit the exact part number, quantity, and application requirements to receive a formal quotation from Festo.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 537254
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 537254.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Based on norm
- ISO 21287
- Variants
- High corrosion protection
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
- Product weight
- 84 g
- Note on materials
- RoHS compliant
- Bracket material
- Steel | With protective coating
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 537254. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
